Building a ChatGPT App With VoltAgent

This guide shows how to use VoltAgent to deploy an MCP server and connect it to ChatGPT Apps using the Apps SDK.

Our starting point is the with-mcp-server example, which bundles multiple agents, helper tools, and an expense approval workflow behind a Model Context Protocol surface.

Setup​

Create the app​

Use the VoltAgent CLI to bootstrap the example locally:

pnpm create voltagent-app@latest -- --example with-mcp-server
cd with-mcp-server

The project comes pre-configured with a VoltAgent runtime, the Hono server provider, and an MCP configuration.

Configure the MCP server​

Inside examples/with-mcp-server/src/index.ts, an MCPServer instance exposes VoltAgent registries to MCP clients:

const mcpServer = new MCPServer({
  name: "voltagent-example",
  version: "0.1.0",
  description: "VoltAgent MCP stdio example",
  protocols: { stdio: true, http: true, sse: true },
  workflows: { expenseApprovalWorkflow },
  adapters: {
    prompts: {
      /* prompt registry */
    },
    resources: {
      /* read-only knowledge assets */
    },
    elicitation: {
      /* human-in-the-loop approvals */
    },
  },
});

The adapters demonstrate how prompts, resources, and elicitation bridges can be surfaced to MCP clients without modifying the global VoltAgent registry.

Register the MCP server with VoltAgent​

The same file wires agents, workflows, and the MCP server into a single VoltAgent instance:

new VoltAgent({
  agents: {
    supervisorAgent,
    translatorAgent,
    storyWriter,
    assistant,
  },
  mcpServers: { mcpServer },
  server: honoServer({ port: 3141 }),
  logger,
});

Key agents include:

• AssistantAgent with helper tools like current_time and confirm_action.
• SupervisorAgent that delegates to the creative StoryWriterAgent or TranslatorAgent.
• Tooling that demonstrates elicitation (manual approval) flows for risky operations.

Add the expense approval workflow​

The example ships with an Expense Approval Workflow built via createWorkflowChain:

const expenseApprovalWorkflow = createWorkflowChain({
  id: "expense-approval",
  name: "Expense Approval Workflow",
  purpose: "Process expense reports with manager approval for high amounts",
  input: z.object({
    /* request payload */
  }),
  result: z.object({
    /* final status */
  }),
})
  .andThen({
    /* suspend/resume step for manager approval */
  })
  .andThen({
    /* final decision logging */
  });

When the claimed amount exceeds $500, the workflow suspends and triggers the MCP elicitation adapter, which—inside the example—auto-approves but can be wired to a human reviewer.

Local Verification​

Start the development server​

Install dependencies and start the development server:

pnpm install
pnpm dev

You should see:

══════════════════════════════════════════════════
  VOLTAGENT SERVER STARTED SUCCESSFULLY
══════════════════════════════════════════════════
  ✓ HTTP Server:  http://localhost:3141
  ✓ Swagger UI:   http://localhost:3141/ui
  ...

• Use http://localhost:3141 as the base URL to inspect agents, tools, prompts, and resources. VoltOps Console at https://console.voltagent.dev lists the MCP endpoints once the server is online.
• Trigger the expense-approval workflow; for amounts over $500, the example’s elicitation adapter simulates a manager granting approval.

Connect to ChatGPT​

Publish the local server​

Because ChatGPT only talks to HTTPS endpoints, tunnel your development server before you move into the Apps SDK flow. A quick option is ngrok:

ngrok http 3141
# Forwarding: https://<subdomain>.ngrok.app -> http://127.0.0.1:3141

Keep the tunnel running; the VoltAgent example listens on 3141, so the default command already forwards the correct port.

Create the ChatGPT connector​

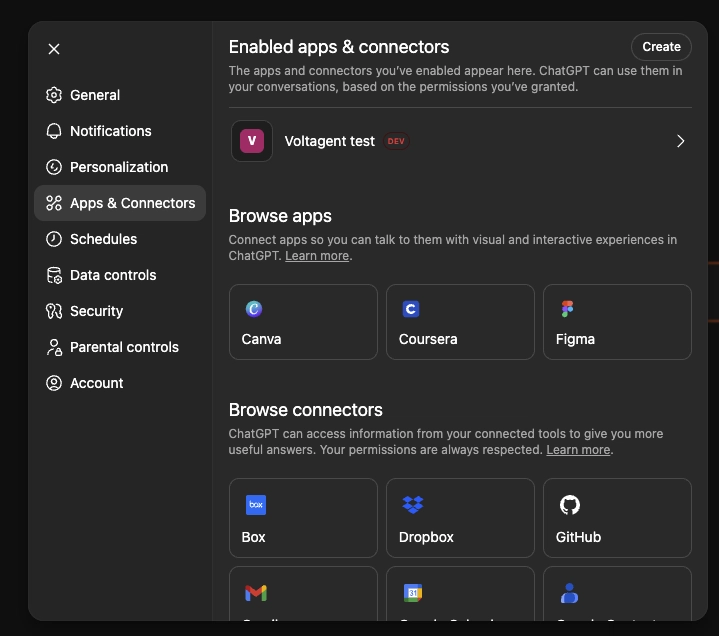

Open ChatGPT, head to Settings → Apps, and work through the following:

1. Turn on developer access. Under Connectors → Advanced, switch on Developer Mode (your OpenAI partner contact or workspace admin needs to grant this once).
2. Create the connector record. Choose Connectors → Create, then point the form at your tunnel:
   • Name: VoltAgent Expense MCP
   • Description: Expense approval workflow, prompts, and helper tools powered by VoltAgent.
   • URL: https://<subdomain>.ngrok.app/mcp/voltagent-example/mcp
3. Skip auth while testing. Leave authentication off until the service is hosted in production.

Exercise the connector from ChatGPT​

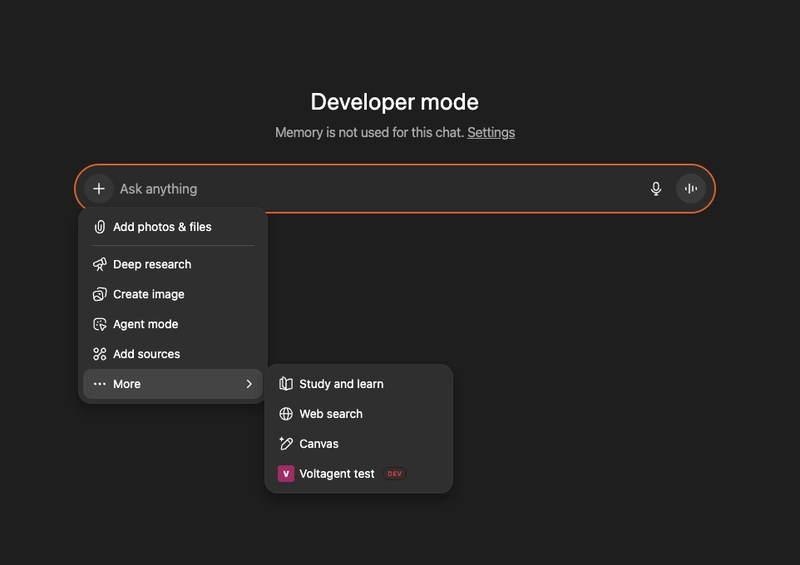

Once the connector is created, open a new ChatGPT conversation and pick the VoltAgent Expense MCP connector from the Apps menu. Suggested smoke tests:

• Call the current_time tool to confirm basic tool execution.
• Submit an expense scenario (for example, “File a $750 hardware reimbursement for employee-123”).
  The model should trigger the workflow, hit the elicitation adapter, and respond with the manager decision produced by the demo integration.

After verifying the connector, VoltAgent tools and workflows remain available over MCP, HTTP, SSE, and stdio. Swap the mock elicitation handler for the approval channel your team relies on, enrich the prompt and resource adapters with real documentation, and expose the service behind an authenticated HTTPS endpoint before sharing it.

Credits​

This example adapts the original walkthrough authored by Ekim Cem Ülger. You can read the initial article on: Building a ChatGPT App with VoltAgent and the Apps SDK.
